rc plane jet engine

making control plane memeng little harder than we imagined, but on my friends will help you if you want to make. before we make it. we will add a little bit of knowledge about the application of force megnetik which also contained electric motor which electric motors are also present in the control plane.the application of magnetic forcealmost everyone was familiar with and impressed by the magnet. as well as the electrical, magnetic phenomena are at the heart of various technologies. the technocrats around the world are working hard to create a transport system that works on the principle of magnetic force on a straight conductor.they managed to create a superfast train that can reach speeds of 500 km / h, two outsmart from ordinary train speed rail system.ELECTRIC MOTORthe electric motor is a technology product that is very commonly and widely used that its presence is no longer foreign tersa. such as CD PLAYER, setarter cars, food processors, refrigerators, vacuum cleaners, electric saws, disk drive of the computer, washing machine, fan, air conditioning, water pump, and many more, can not function without electric motor. that serves as the heart of the electric motor is a current loop in a magnetic field. however, current flow changes direction periodically. motor direct current (DC), reversal is done through electrical contacts which provide the loop current. upward force working on the wire PQ and style down to the wire RS, so that the coil begins to spin. however, after the coil rotates 180 Darajat, wire PQ position is replaced by RS thus opposite direction of flow into its original and coupling moments are not so turned as mentioned above. we set it to the side of the wire that was close to the magnetic south pole is always connected to the negative pole of the battery. while the wire close to the north magnetic pole is always connected to the positive pole of the battery. for this we use a split ring connected kesisi different coils. relationship (contact) between battery with split rings occur because of the carbon brushes. coils and commutator rotates, the coil section right side is always associated with the negative pole, whereas the left side is always associated with the positive pole of the battery. In practice, an electric motor with a coil will not be effective. a coil consisting of many turns increases the motor turning force and make it more useful.
the first step we have to do to make a remote water lontrol must prepare tools and materials.

equipment and materials used are
BASIC SETUP (60+ mph)

1. Motor: A2212 1000KV outrunner Brushless motors

2. ESC: 30A Brushless ESC

3. Prop: APC 8x4 (or better recomended)

4. Battery: 2200 mAh, 11,1V (25C or better recomended)

5. Servos: 2 each Micro Servo

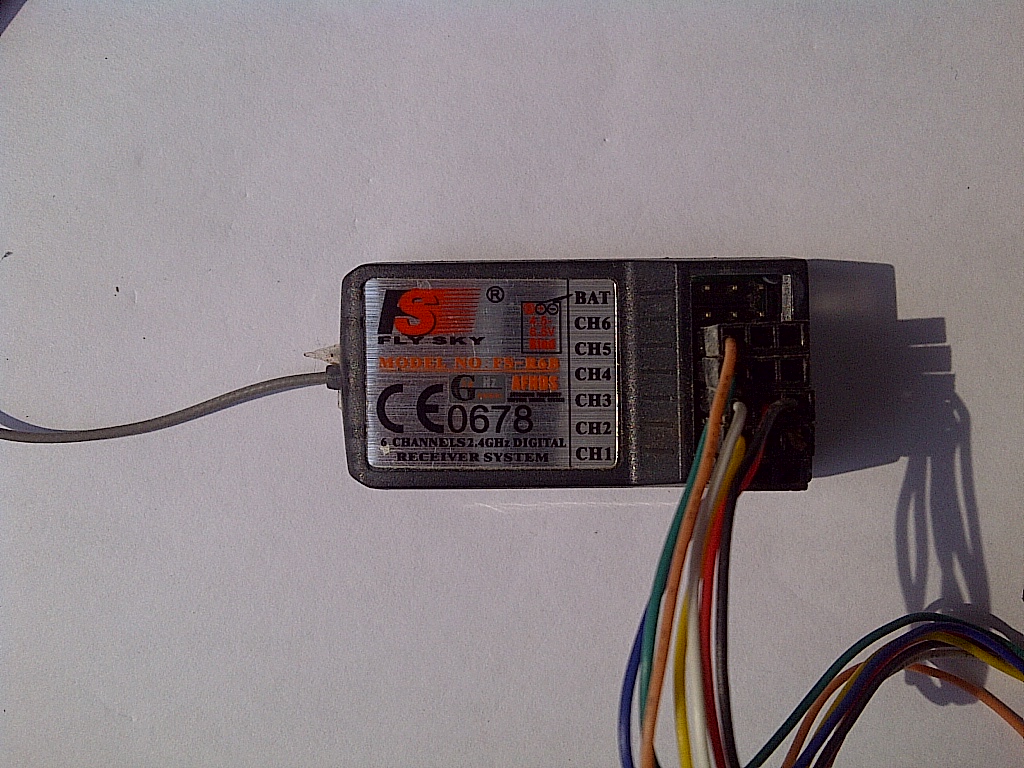

6. Radio & Receiver: Any 6-channel or better (2.4 GHz preferred)

7. fly control: an open pilot

 WORKING TOOL:

1. Cutter

2. Ruler

3. pen / pencil

4. duct tape

5. Wire

6. Glue

7. carton

Materials to be used:

1. The former cork, or foamboard, or depron or fan fold foam can be used with improvised carbon spars where needed

2. flywood or Baswood sheets.

Then you can follow the shape and size below

(Pictures)

see the video below to assemble the fuselage! (VIDEO)
